LMG3410R050功率放大級解決方案

信息來源 : 網絡 | 發布時間 : 2022-10-27 08:56 | 瀏覽次數 : 773

TI公司的LMG3410R050是具有過流保護的600-V 50-mΩ GaN功率放大級，主要用在高密度工業和消費類電源,多級轉換器,太陽能逆變器,工業馬達驅動,不間斷電源(UPS)以及高壓電池充電器.

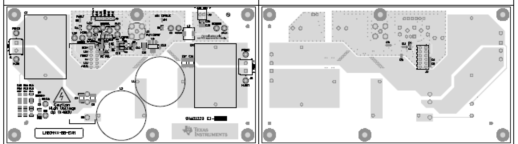

　　TI公司的LMG3410R050是具有過流保護的600-V 50-mΩ GaN功率放大級,比硅MOSFET具有固有的優勢包括超低輸入和輸出電容,零反向恢復以降低開關損耗達80%之多,以及低開關節點振鈴以降低EMI,20ns傳輸時延用于MHz工作,25-100V/ns用戶可調轉換速率,具有強健的保護,不需要外接保護元件,主要用在高密度工業和消費類電源,多級轉換器,太陽能逆變器,工業馬達驅動,不間斷電源(UPS)以及高壓電池充電器.本文介紹了LMG3410R050主要特性, 功能框圖和應用電路,以及評估板LMG3410EVM-018和LMG34xx-BB-EVM主要特性和指標,電路圖,材料清單和PCB設計圖.

　The LMG3410R050 GaN power stage with integrated driver and protection enables designers to achieve new levels of power density and efficiency in power electronics systems. The LMG3410’s inherent advantages over silicon MOSFETs include ultra-low

　input and output capacitance, zero reverse recovery to reduce switching losses by as much as 80%, and low switch node ringing to reduce EMI. These advantages enable dense and efficient topologies like the totem-pole PFC.

　The LMG3410R050 provides a smart alternative to traditional cascode GaN and standalone GaN FETs by integrating a unique set of features to simplify design, maximize reliability and optimize the performance of any power supply. Integrated gate drive enables 100V/ns switching with near zero Vds ringing, <100 ns current limiting self-protects against unintended shoot-through events, Overtemperature shutdown prevents thermal runaway, and system interface signals provide self-monitoring capability.

　　LMG3410R050 is a high-performance 600-V GaN transistor with integrated gate driver. The GaN transistor provides ultra-low input and output capacitance and zero reverse recovery. The lack of reverse recovery enables efficient operation in half-bridge and bridge-based topologies.

　TI utilizes a Direct Drive architecture to control the GaN FET within the LMG3410R050. When the driver is powered up, the GaN FET is controlled directly with the integrated gate driver. This architecture provides superior switching performance compared with the traditional cascode approach.

　The integrated driver solves a number of challenges using GaN devices. The LMG3410R050 contains a driver specifically tuned to the GaN device for fast driving without ringing on the gate. The driver ensures the device stays off for high drain slew rates up to 150 V/ns. In addition, the integrated driver protects against faults by providing overcurrent and overtemperature protection. This feature can protect the system in case of a device failure, or prevent a device failure in the case of a controller error or malfunction.

　　Unlike silicon MOSFETs, there is no p-n junction from source to drain in GaN devices. That is why GaN devices have no reverse recovery losses. However, the GaN device can still conduct from source to drain in 3rd quadrant of operation similar to a body diode but with higher voltage drop and higher conduction loss. 3rd quadrant operation can be defined as follows; when the GaN device is turned off and negative current pulls the drain node voltage to be lower than its source. The voltage drop across GaN device during 3rd quadrant operation is high; therefore, it is recommended to operate with synchronous switching and keep the duration of 3rd quadrant operation at minimum.

LMG3410R050主要特性:

　　1? TI GaN Process Qualified Through Accelerated Reliability In-application Hard-switching Mission Profiles

　　? Enables High Density Power Conversion Designs

　　– Superior System Performance Over Cascode or Stand-alone GaN FETs

　　– Low Inductance 8mm x 8mm QFN Package for Ease of Design, and Layout

　　– Adjustable Drive Strength for Switching

　　Performance and EMI Control

　　– Digital Fault Status Output Signal

　　– Only +12 V Unregulated Supply Needed

　　? Integrated Gate Driver

　　– Zero Common Source Inductance

　　– 20 ns Propagation Delay for MHz Operation

　　– Process-tuned Gate Bias Voltage for Reliability

　　– 25 to 100V/ns User Adjustable Slew Rate

　　? Robust Protection

　　– Requires No External Protection Components

　　– Overcurrent Protection with <100ns Response

　　– >150V/ns Slew Rate Immunity

　　– Transient Overvoltage Immunity

　　– Overtemperature Protection

　　– UVLO Protection on All Supply Rails

　　LMG3410R050應用:

　　? High Density Industrial and Consumer Power Supplies

　　? Multi-level Converters

　　? Solar Inverters

　　? Industrial Motor Drives

　　? Uninterruptable Power Supplies

　　? High Voltage Battery Chargers

　　圖1. LMG3410R050簡化框圖

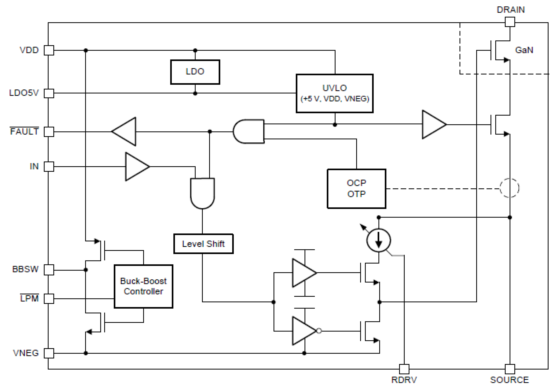

　　圖2. LMG3410R050功能框圖

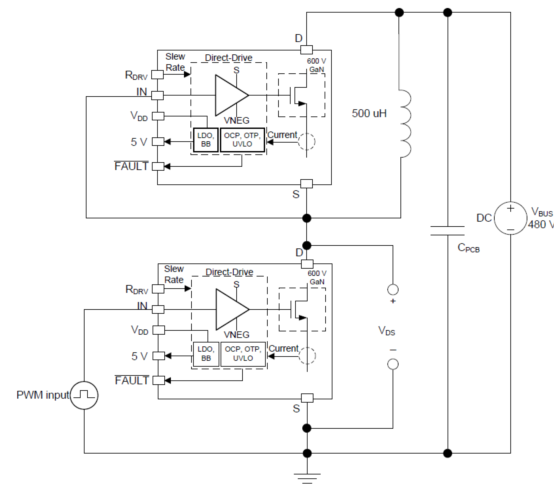

　　圖3. LMG3410R050用來確定開關參數的電路圖

　　圖4. LMG3410R050應用電路圖

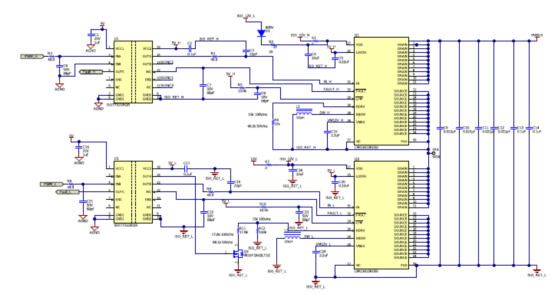

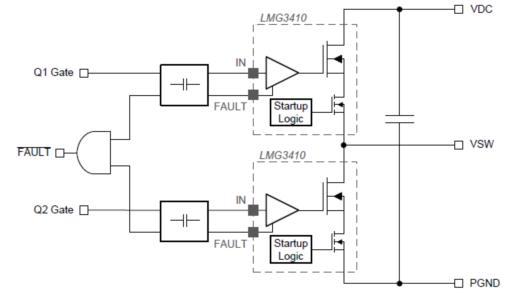

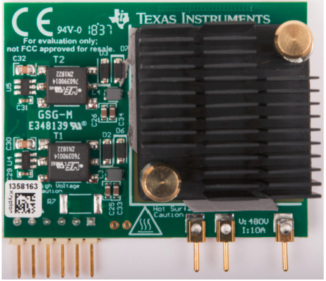

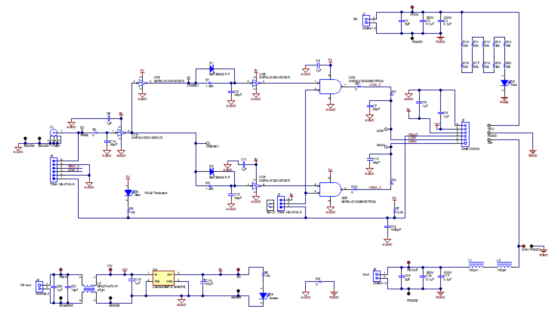

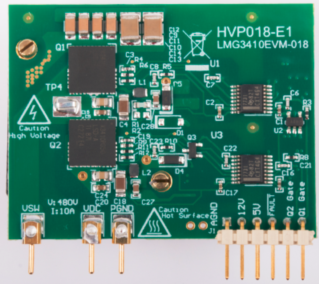

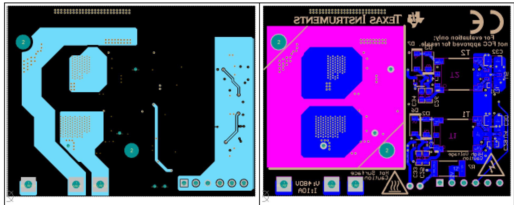

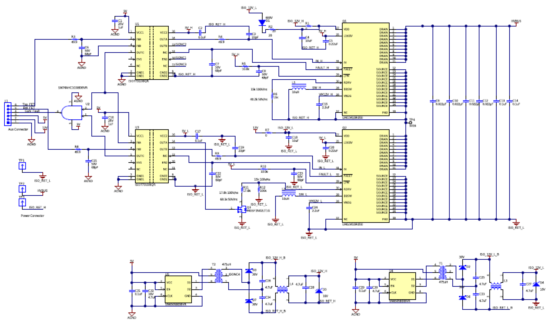

　　評估板LMG3410EVM-018

　The LMG3410EVM-018 features two LMG3410R050 600V GaN power transistors with integrated drivers that are configured in a half bridge with all the required bias circuit and logic/power level shifting. Essential power stage and gate driving high frequency current loops are fully enclosed on the board to minimize parasitic inductances, reducing voltage overshoots and improving performance. The LMG3410EVM-018 is configured to have a socket style external connection for easy interface with external power stages to run the LMG3410R050 in various applications.
